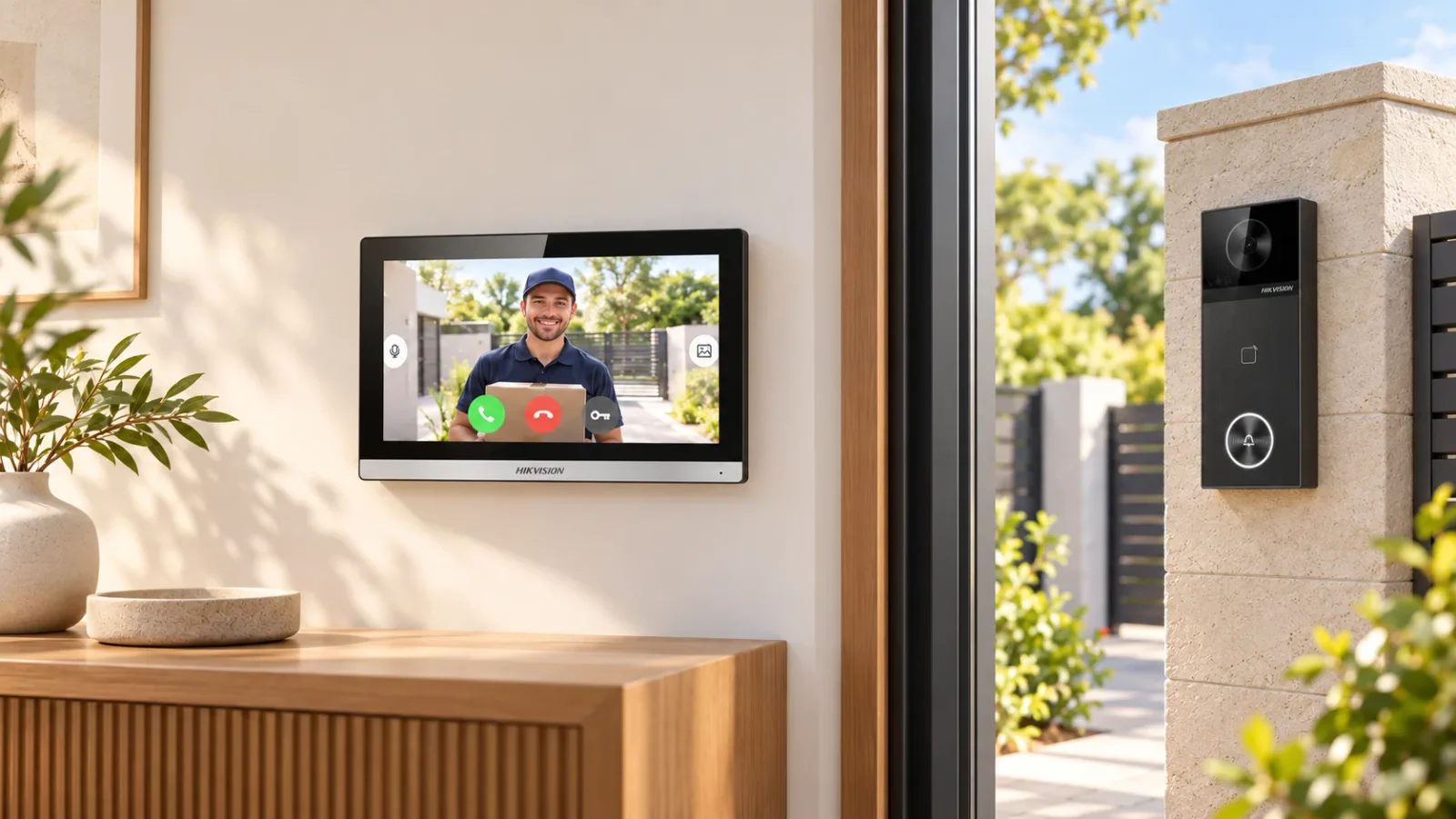

What is the Hikvision DS-KIS610-P? It is an IP video intercom kit for a villa, townhouse or small office. The box holds one 4MP outdoor door station with a 150° camera, one 7-inch indoor touch monitor, a rain cover, two power supplies, an administrator card and five key fobs. A visitor presses the single call button, you see and speak to them on the monitor or in the Hik-Connect app, and you can release up to two locks, such as a pedestrian gate and a front door, from the screen, your phone, a key fob or a Bluetooth-paired phone. Both units run on standard PoE, so one network cable carries power and video.
This guide covers what is in the kit, what the datasheet figures mean at a real gate in Dubai, who it suits and what installation involves. All figures are from the Hikvision DS-KIS610-P datasheet (September 2026 revision).
What Is in the DS-KIS610-P Box?
| Item | Model | What it does |
|---|---|---|
| Door station | DS-KV6114-WBE1 | Outdoor unit with the camera, call button, card reader and lock relays |
| Indoor station | DS-KH6350-WTE1 | 7-inch touch monitor you answer calls on inside the house |
| Rain cover | DS-KABV6114-RS | Shields the door station from direct rain and sun |
| Power supplies | 2 units | For sites where PoE is not available |
| Administrator card | 1 | Used to enrol other cards and fobs at the door station |
| Key fobs | 5 | Tap-to-unlock fobs for family or staff |
You still need the lock itself (an electric strike, magnetic lock or gate motor interface), a network cable from the gate to the house, and either a PoE switch or the included power supplies. These are chosen at the site survey.
Door Station: What the 4MP Camera and 150° Lens Mean at a Gate
The door station records at up to 4MP (2688 × 1520) with a horizontal field of view of 150° and a vertical field of 75°. At a gate, the wide lens matters more than the resolution: a visitor standing to the side of the panel, or a delivery rider on a motorcycle, stays in frame. Infrared illumination covers up to 3 metres, enough to see a face after dark.
Video is compressed with H.264, H.265 or MJPEG, and the TF card slot accepts cards up to 128 GB. With motion detection and playback, you can review who approached the gate even when nobody pressed the button.
The door station is rated IP65 with a working temperature range of -40 °C to 60 °C. On a west-facing villa wall in Dubai, the upper figure is the one to check, because a panel in direct afternoon sun runs hotter than the air. The rain cover in the kit helps.
Four Ways to Unlock, and Two Locks From One Station
The door station has two relay outputs (maximum 30 VDC, 2 A each). That is the feature that makes this kit suit villas: one relay can drive the pedestrian gate lock and the other the front-door strike, both from the same panel and the same app.
Visitors and residents can be let in four ways:
- Card or key fob. The reader works at 13.56 MHz with Mifare (M1) cards at a reading distance of 2 to 2.5 cm. The door station stores up to 2,000 users and 6,000 cards.
- Bluetooth. A paired phone can unlock as the resident approaches, without opening an app.
- Hik-Connect app. Answer the call and press unlock from anywhere with internet access.
- Indoor station. Press the unlock icon on the 7-inch monitor.
There is also an exit button input, a door contact input so the system knows whether the door actually closed, an RS-485 port and a tamper switch that triggers if the panel is removed from the wall.
Which lock goes on the relay? The relays are switches; the lock has its own power supply. The three we fit most on villas are:
- Magnetic lock (maglock). A plate on the frame and an armature on the gate or door. It holds while powered and releases when the relay cuts the power, so it needs its own 12 V supply and usually a backup battery to stay locked during a power cut. It suits metal pedestrian gates and glass doors where a strike cannot be fitted, and an exit button or sensor inside lets people out.
- Electric strike. Replaces the keeper in the door frame and works with the existing latch. It stays locked without power, so it is the usual choice for a front door and the lock we include in our standard DS-KIS610-P package.
- Gate motor. For a sliding or swing driveway gate, the relay triggers the motor's open input instead of a lock.
Our door access control page explains locks, exit buttons and door contacts in more detail; at the survey we confirm which lock suits each door before quoting.
Indoor Station and the Hik-Connect App
The DS-KH6350-WTE1 indoor station connects by cable (RJ-45) or 2.4 GHz Wi-Fi and is powered by PoE (802.3af) or 12 VDC. Its built-in microphone and loudspeaker use noise suppression and echo cancellation, which stops the call sounding hollow when the gate is near a busy road. It also has 8 alarm inputs, 2 relay outputs and a TF card slot up to 128 GB.
The Hik-Connect app handles calls, live view, unlocking and notifications on iOS and Android. If you already run Hikvision CCTV at the property, the intercom appears in the same app. The door station supports ONVIF, SIP and RTSP, so its video can be recorded by a compatible network video recorder; we confirm recorder compatibility during the survey rather than assuming it.
Specifications That Matter in the UAE
| Specification | Door station | Indoor station |
|---|---|---|
| Resolution | Up to 4MP (2688 × 1520) | 7-inch touch screen |
| Field of view | 150° horizontal, 75° vertical | n/a |
| Night vision | IR up to 3 m | n/a |
| Power | PoE (802.3at) or 12 VDC 1.2 A | PoE (802.3af) or 12 VDC 1 A |
| Network | RJ-45, Wi-Fi 6 (2.4 GHz), Bluetooth | RJ-45, Wi-Fi (2.4 GHz) |
| Lock control | 2 relays, max 30 VDC 2 A | 2 relays |
| Storage | TF card up to 128 GB | TF card up to 128 GB |
| Protection | IP65, tamper switch | Indoor use |
| Working temperature | -40 °C to 60 °C | -10 °C to 50 °C |
| Size | 164 × 69 × 24.7 mm, surface mount | 175 × 113 × 21 mm |
| Languages | English, Arabic and others | Same menu languages |
The menu languages include English and Arabic, useful where family members or staff prefer one or the other on the indoor screen. The door station also offers sound classification detection for screams, glass breaking and crying (recommended distance 3 metres). It is an alert feature, not a replacement for an intruder alarm.
Is the DS-KIS610-P the Right Choice for You?
The kit suits a single entrance with one or two doors and one indoor monitor. Here is how it compares with a Wi-Fi video doorbell, which is the other option most villa owners consider.
| Your situation | Wi-Fi video doorbell | DS-KIS610-P kit |
|---|---|---|
| Villa with gate and front door | Covers one door only | Two locks from one panel |
| Need an indoor monitor, not only a phone | No | Yes, 7-inch touch screen |
| Cards and fobs for family and staff | Usually no | Yes, 5 fobs included |
| Wired, PoE, no battery to charge | Usually no | Yes |
| Night view at the gate | Depends on model | IR up to 3 m |
| Link to Hikvision CCTV in one app | Depends on brand | Yes, Hik-Connect |
If you need a second indoor station, say for a first-floor landing, extra Hikvision indoor stations can be added to the same door station. Our video intercom systems page covers the wired, wireless and IP options we install.
What Installation Involves in Dubai
A typical villa installation is completed in a day once the parts are on site:
- Site survey. We confirm the gate lock type, the cable route from gate to house, where the monitor goes and whether PoE is available. Villa gates are often 20 to 40 metres from the house, so the route and conduit matter.
- Cabling. One Cat6 cable to the door station, powered by PoE from a switch in the house or the included 12 VDC supply at the gate.
- Door station mounting. Surface mounted with the rain cover, at a height that keeps an adult's face in the 150° frame.
- Locks. Wiring the gate maglock or motor and the front-door strike to the two relays, with their power supplies, plus the exit button and door contact if used.
- Indoor station and app. Mounting the monitor, adding both devices to Hik-Connect and testing calls, unlock and notifications on each phone.
- Cards and fobs. Enrolling the five fobs and any extra cards with the administrator card.
Request a quotation for the kit supplied, installed and configured, with a one-year on-site warranty.
Most villa owners pair the intercom with home CCTV so the gate camera and the intercom sit in the same Hik-Connect app.
Frequently Asked Questions
Does the Hikvision DS-KIS610-P work without internet?
Yes. Calls between the door station and the indoor monitor run over the local network, so you can see, talk and unlock from the indoor screen without an internet connection. Internet is needed only for the Hik-Connect app on your phone and for remote notifications.
Can I unlock two doors with one DS-KIS610-P?
Yes. The door station has two relay outputs rated at 30 VDC 2 A each, so one can control a pedestrian gate lock and the other a front-door strike, both from the indoor monitor or the app.
Does the DS-KIS610-P need PoE?
No, but it helps. Both units accept standard PoE (802.3at for the door station, 802.3af for the indoor station), which means one cable for power and data. The kit also includes two 12 VDC power supplies for sites without a PoE switch.
Can I record who comes to the gate?
Yes. Both the door station and the indoor station have a TF card slot that accepts cards up to 128 GB, and the door station supports motion detection and playback. For longer retention the video stream can be recorded by a compatible Hikvision recorder, which we confirm at the survey.
Will it survive a Dubai summer outdoors?
The door station is rated IP65 and has a working temperature range of -40 °C to 60 °C according to the datasheet. We fit the included rain cover and avoid mounting positions in direct afternoon sun where possible.
How many cards and fobs can it hold?
The door station stores up to 2,000 users and 6,000 cards. Five key fobs and one administrator card are included in the kit, and more Mifare cards or fobs can be added.
Can the DS-KIS610-P control a magnetic lock?
Yes. Each of the two relays switches the lock's own power supply, so a magnetic lock on a gate or glass door releases when you press unlock. Because a maglock opens when power is lost, we fit it with its own supply and backup battery, and an exit button inside so people can leave without the app.
Can I add more indoor monitors later?
Yes. Additional Hikvision indoor stations can be connected to the same door station so that calls ring in more than one room. Tell us how many you expect during the survey so the cabling and power are planned for it.
Planning a Video Intercom for Your Villa or Office?
E Concept supplies, installs and configures Hikvision IP video intercom kits across Dubai and the UAE, including the cabling, lock and app setup, with a one-year on-site warranty. Tell us the property type, how many doors you want to control and how many indoor monitors you need, and we will send an itemised quotation.
